Bd Scorpion Turbo Kit Ford 6.7L Powerstroke 2011-2016

BD SCORPION TURBO KIT FORD 6.7L POWERSTROKE 2011-2016

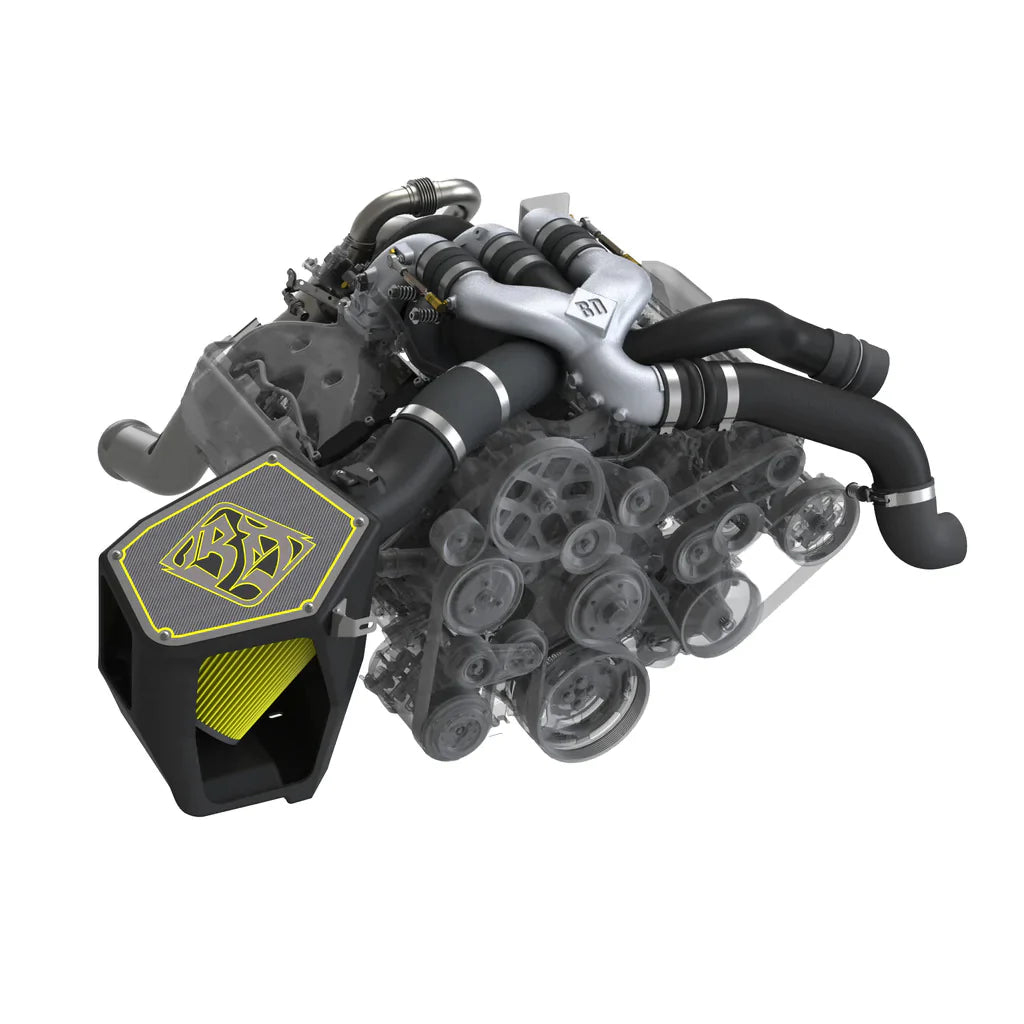

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.

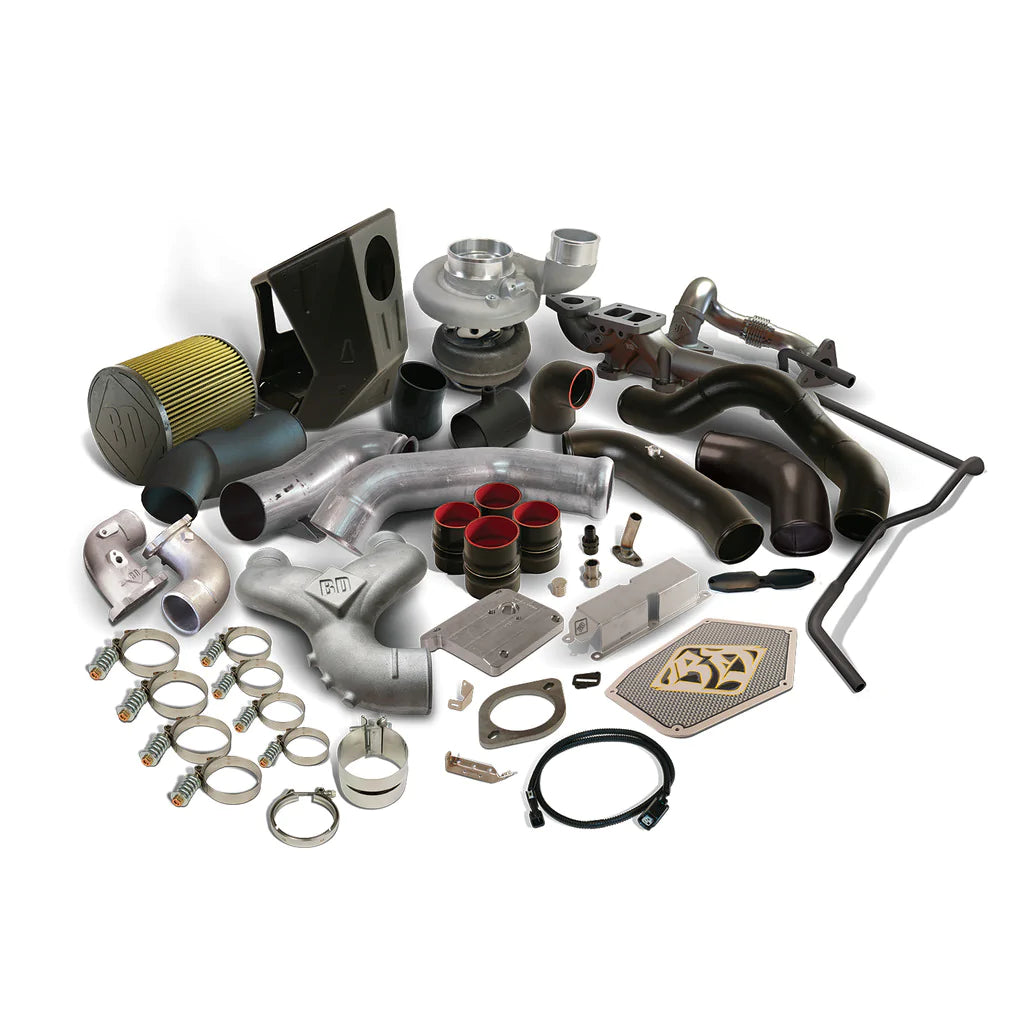

Features

• Larger turbochargers available for even higher horsepower
• Race tune required (not included)
• BD 90-deg compressor cover with 2.75in (S300) or 3.00in (S400) outlet
• BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
• BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
• BD high strength A356 aluminum intake horns
• BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
• BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
• BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
• BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
• Stainless heat shield keeps heat in and intake temperatures down
• Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
• BD Boot Lock ready with boss positions on intake and outlets
• Compatible with stock or aftermarket water-to-air intercooler

Warranty

• 12-Months Parts
• 12,000 Miles

Note

• 2015-up model years require 1045805 application kit
• Requires tuner with special programming due to VGT removal: EZ Lynk tuned by AMDP, or SCT (custom tuned)
