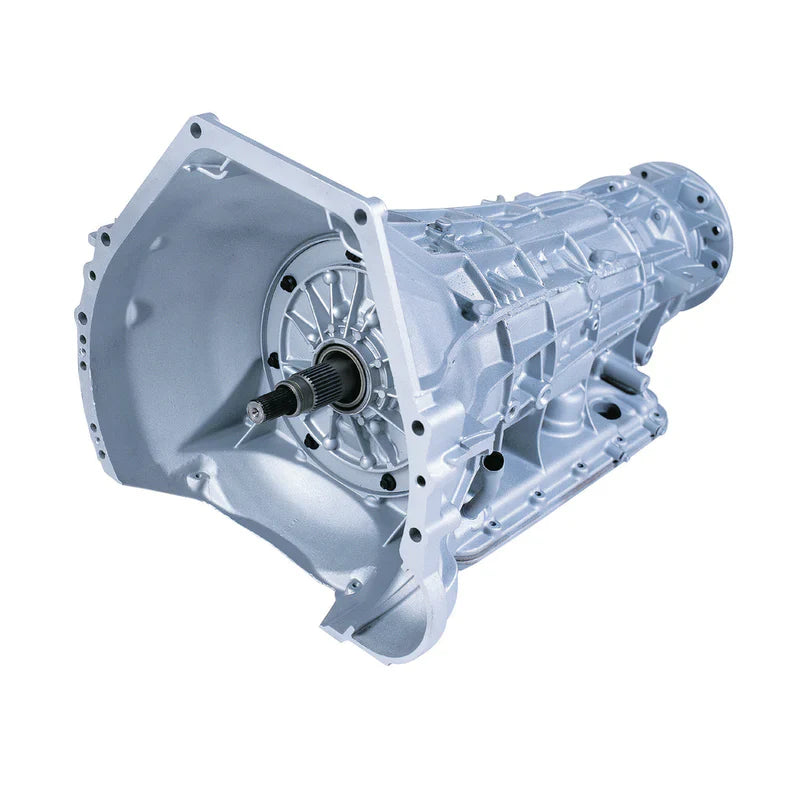

4R100 TRANSMISSION WITH FILTER KIT FORD POWERSTROKE 7.3L 1999-2003
The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
Features
- Increase the durability of your drivetrain
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Re-calibrated accumulator body
- Quicker, firmer shifts
- Full shift kit with line mod valve to increase pressures
- Increased pressure to converter
- Added lube circuits to OD planet
- Added lube and support to output and intermediate shafts
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Upgraded OD snap ring
- Machined center support
- Reworked front pump
- Fully rollerized geartrain
- Clutch Count: COAST CLUTCH 2
- Clutch Count: FORWARD 5 (25% increase over stock)
- Clutch Count: DIRECT 5
- Clutch Count: LOW REVERSE 7 (17% increase over stock)
- Clutch Count: INTERMEDIATE 4 (33% increase over stock)
- Clutch Count: OVERDRIVE 4 (33% increase over stock)
- Each transmission is dyno tested

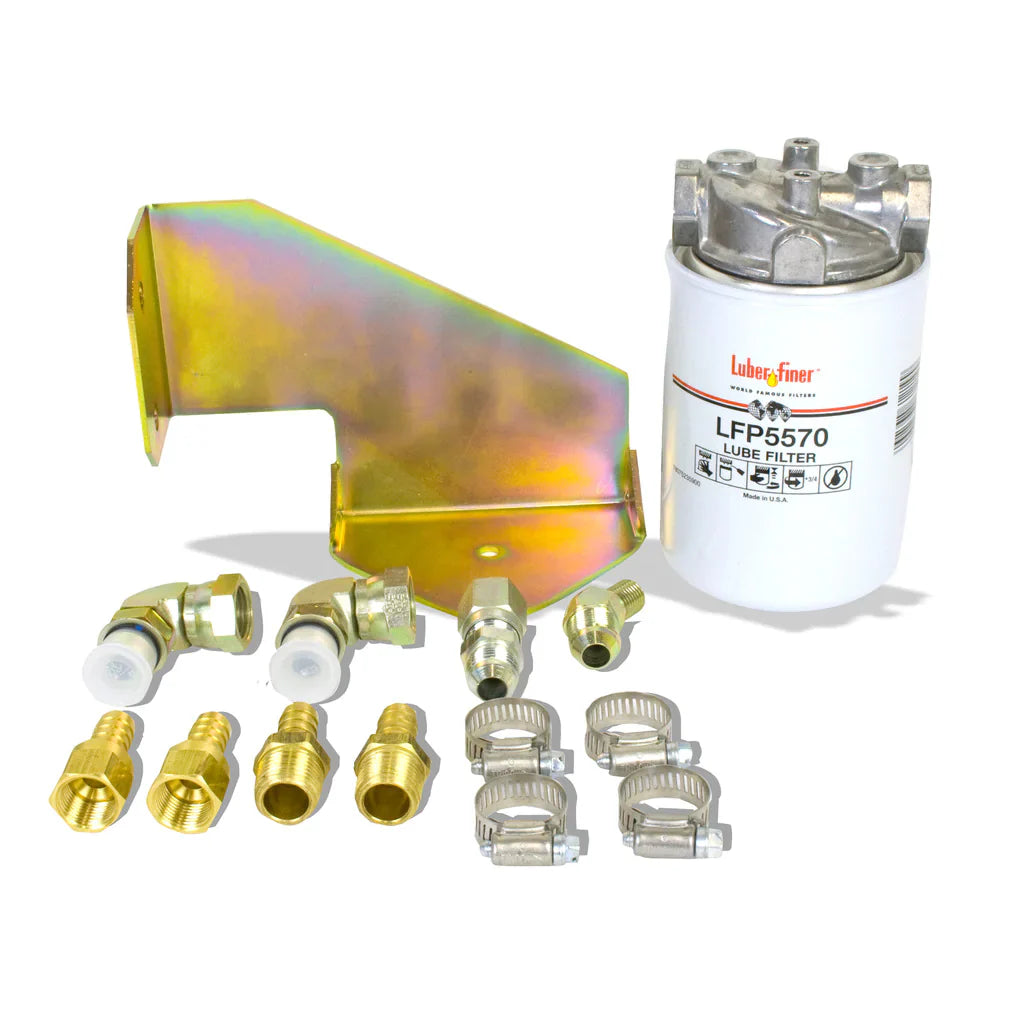

- 1990-2003 include auxiliary frame mounted full flow filter kit
Warranty
- 36-Months Parts
- 150,000 Miles
- No Race abuse covered.
Note
- BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
- Does not have PTO provision
- Excursion requires use of factory style transmission pan. BD Deep Pan will interfere with factory crossmember
- Sending your core in after receiving your order will result in an upfront core charge amount of $2000 to be refunded upon the return and inspection of the core
- Damaged cores that do not comply with manufactures core return guidelines will not be refunded
- Return Core Shipping Costs are at the purchasers expense
